How to Replace the Battery in a Halo Remote

Halo Remotes use a replaceable battery. The 1-Button Remote (Legacy) and Halo Remote Control can both be opened using the same basic process.

Follow the steps below to open your remote and replace the battery.

1-Button Remote (Legacy)

Steps to Replace the Battery:

1. Place the Remote on a flat surface

• Position the Remote so you can easily access the slotted opening along the edge of the casing.
• Use a small flat-head screwdriver to open the Remote.

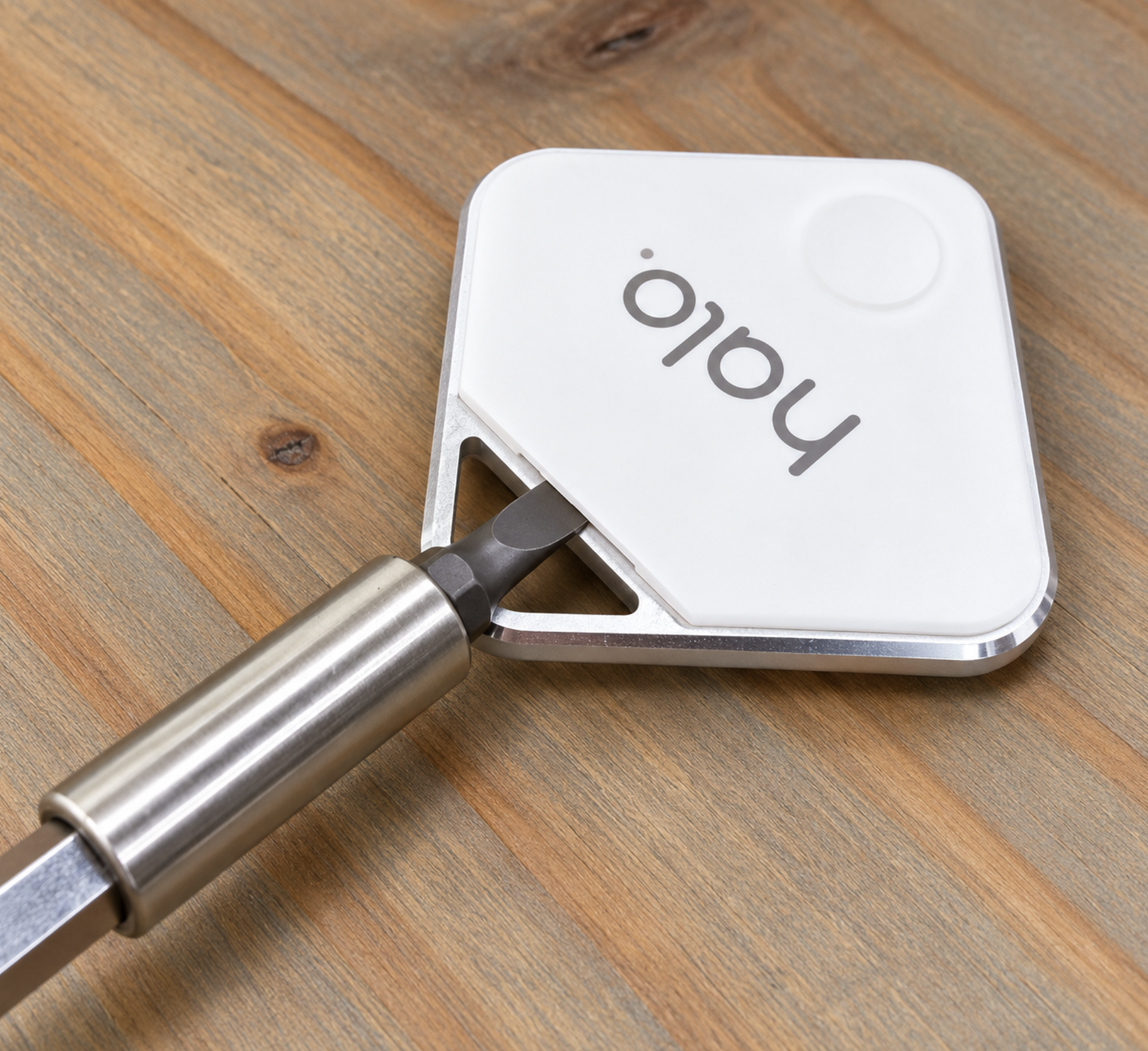

2. Open the Remote casing

• Insert the tip of the flat-head screwdriver into the slotted opening.
• Carefully press downward on the screwdriver to gently pry the two halves of the casing apart.
• Once the casing begins to separate, carefully open the Remote.

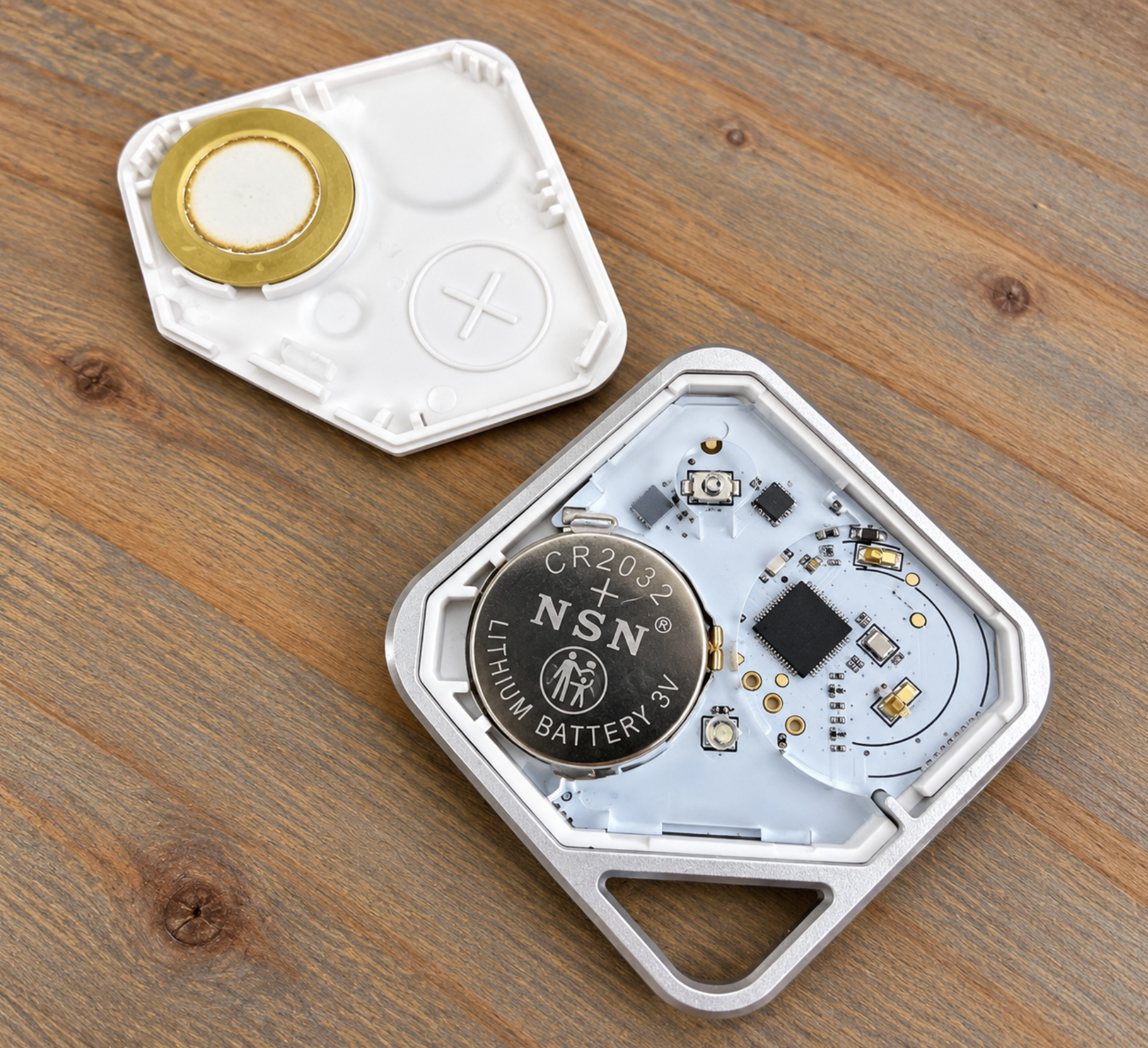

3. Remove and replace the battery

• Locate the CR2032 3V lithium coin cell battery inside the Remote.
• Remove the old battery from the battery holder.
• Insert a new CR2032 battery, making sure the positive (+) and negative (–) sides are oriented correctly.

4. Close the Remote

• Align the two halves of the casing.
• Press them together firmly until the casing snaps completely back into place.
• Check around the edges to make sure the casing is fully closed.

Halo Remote Control

Steps to Replace the Battery:

1. Place the Remote Control on a flat surface

• Position the Remote Control so you can access the slotted opening in the casing.
• Use a small flat-head screwdriver to open the Remote.

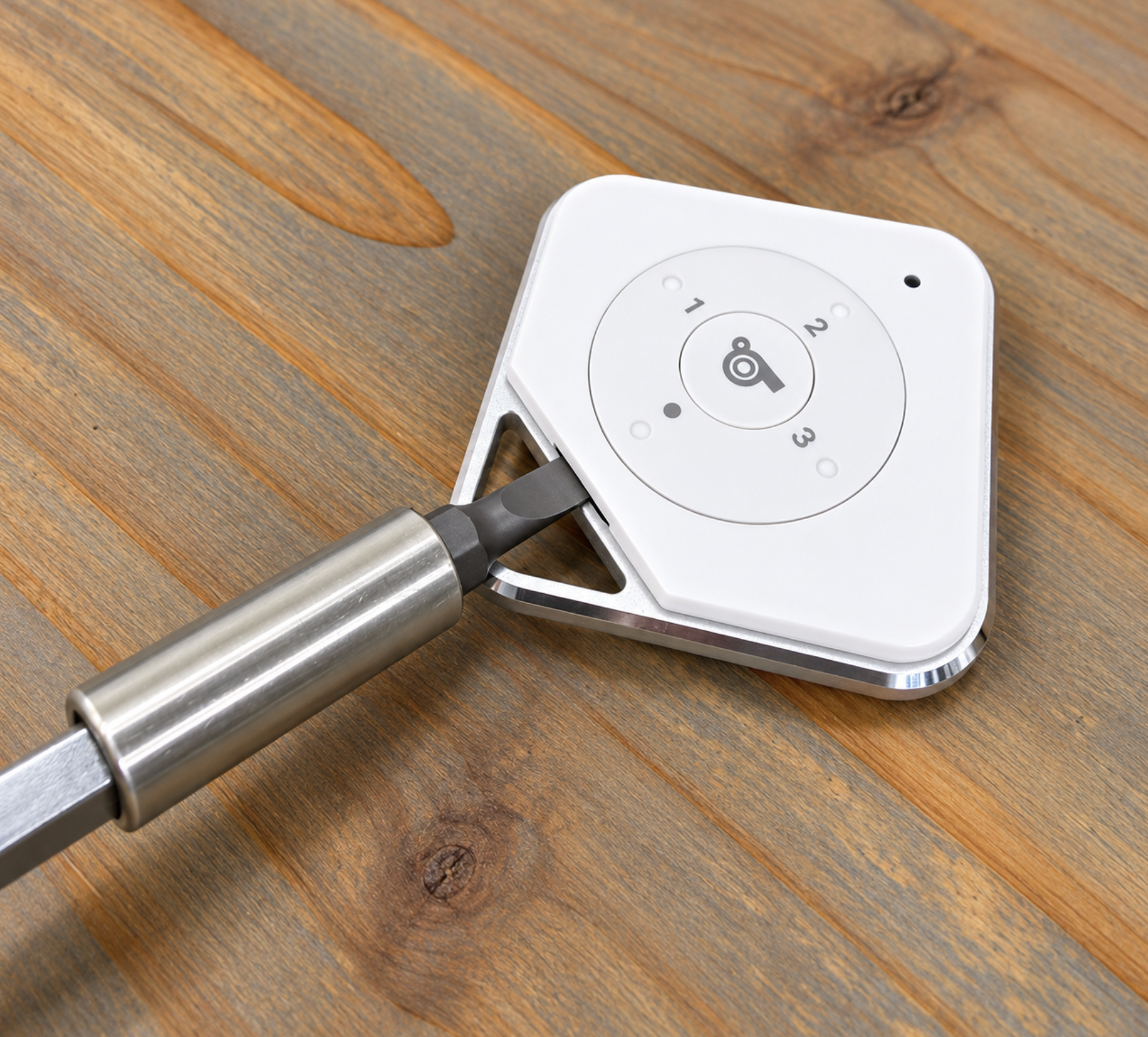

2. Open the Remote Control casing

• Insert the tip of the flat-head screwdriver into the slotted opening.
• Carefully press downward on the screwdriver to lift the upper casing away from the lower casing.
• Once the casing separates, carefully lift it open.

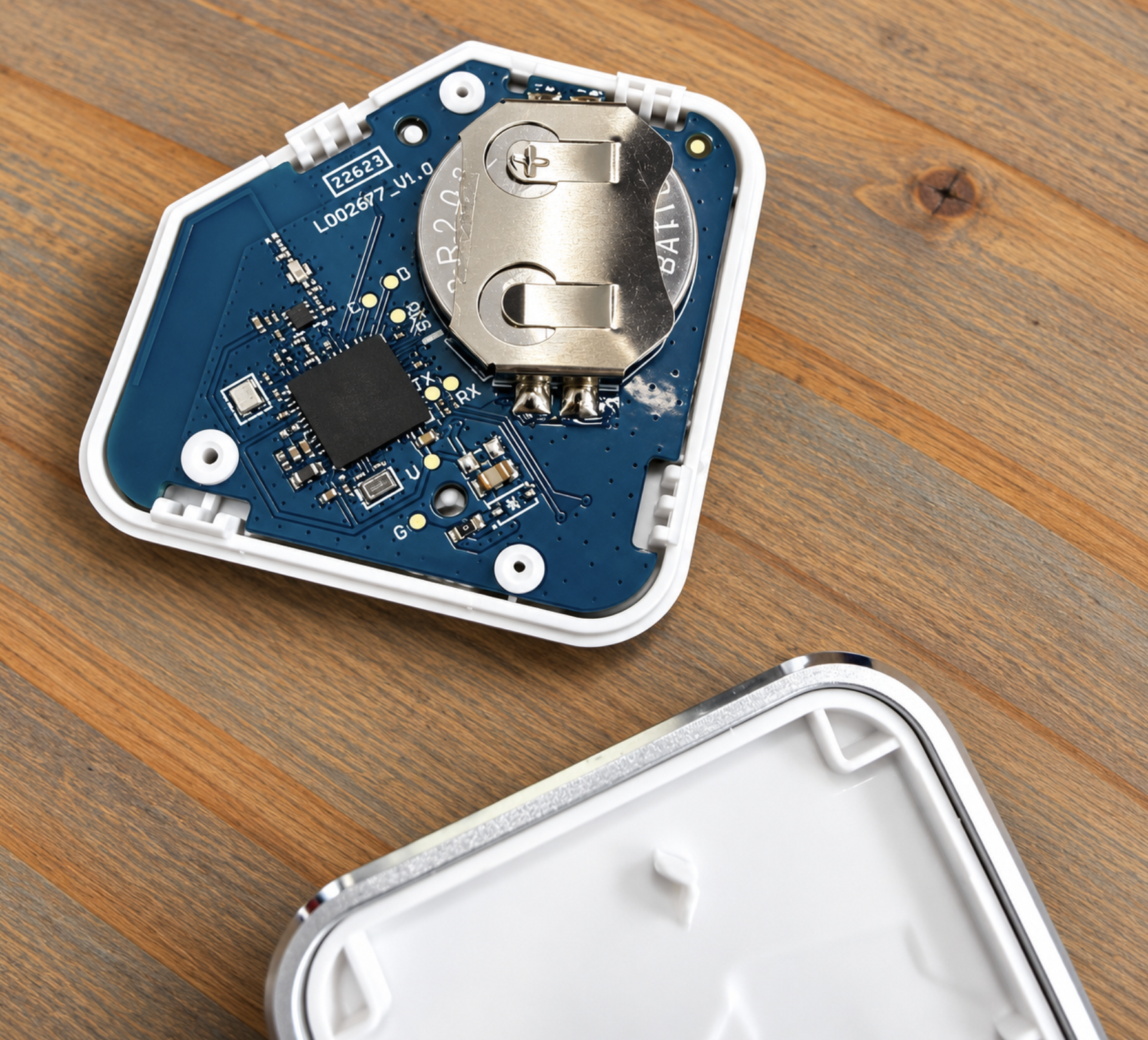

3. Remove and replace the battery

• Locate the battery inside the Remote Control.
• Remove the old battery from the battery holder.
• Insert the new battery, making sure the positive (+) and negative (–) sides match the markings in the battery compartment.

4. Close the Remote Control

• Carefully align the casing.
• Press the two halves together until they snap securely into place.
• Make sure there are no gaps around the edge of the Remote.

Important

Use care when prying open either Remote. Do not force the screwdriver deeply into the casing, as this could damage the internal components.
